ALICON

B235

Weight
1,856kg
Suitable Excavator
18~25ton

Specifications

Metric
US/Imperial
주요 제원
Description Unit -
Control Valve Type - Outer control valve installed with accumulator - Outer control valve installed with accumulator
Suitable Excavator ton 18~25 lb 39,683~55,116
Weight [Top box type] kg 1,856 lb 4,092
Overall Length [Top box type] mm 2,881 in 113.4
Weight [Side type] kg 1,742 lb 3,840
Overall Length [Side type] mm 2,348 in 92.4
Weight [Split type] kg 1,970 lb 4,343
Overall Length [Split type] mm 2,841 in 111.9
Chisel Out Diameter mm 140 in 5.5
Working Length of chisel [Top box type] mm 1,300 in 51.2
Setting Pressure kgf/cm² 210 psi 2,987
Working Pressure kgf/cm² 130~180 psi 1,849~2,560
Oil Flow LPM 130~170 GPM 34.3~44.9
Blow Rate [Standard speed] BPM 250~400 BPM 250~400
Blow Rate [High speed] BPM 350~500 BPM 350~500
Back Head N2 Gas Pressure kgf/cm² 11~14 psi 156~199

※ The specifications are subject to change without prior notice for quality improvement.
※ Weight includes mounting bracket to attach to excavator and may vary depending on mounting bracket configuration.

Application

Standard [●]    Option [○]
Application
Description -
Under water works​ ○
Auto greasing system hole​ ●
TPC (Total Power Control) system selector type​ ●
ABF (Anti Blank Firing) system​ ●
Auto greasing unit​ ○
Central grease supply unit​ ○
BPM adjuster​ ●
Internal relief valve​ ○
TPC (Total Power Control) system remote control type​ ○
Low noise housing bracket​ ○

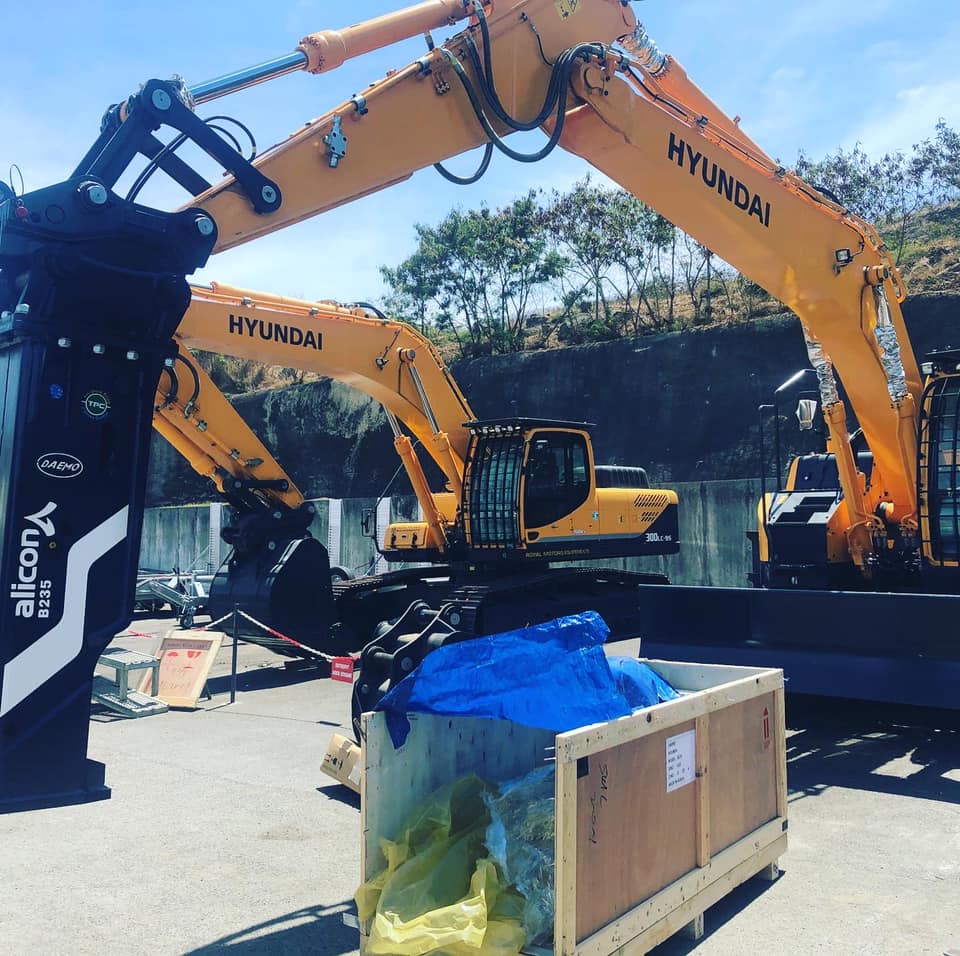

Pictures
